Einzelheiten zu den Produkten

Zu Hause Produits

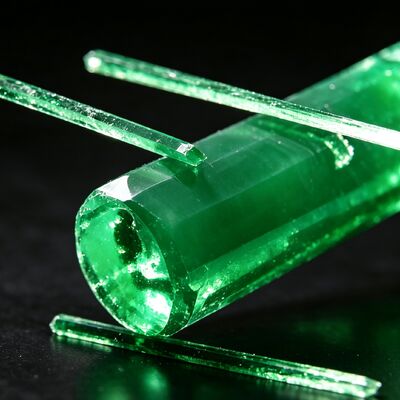

Ho:Cr:Tm:YAG (CTH:YAG) Laser Crystal, 2.1μm Eye-Safe, High Efficiency Flash/Diode Pumped

Name: Ho:Cr:Tm:YAG (CTH:YAG) Laser Crystal, 2.1μm Eye-Safe, High Efficiency Flash/Diode Pumped
Brand: ANHUI CRYSTRO CRYSTAL MATERIALS Co., Ltd.
SKU: LCR-2026-15-01
Price: 1,005.00 USD
Availability: InStock

Markenbezeichnung:	Crystro
Modellnummer:	LCR-2026-15-01
Lieferzeit:	4-5 Wochen
Zahlungsbedingungen:	T/T, Western Union, MoneyGram, Paypal

Einzelheiten

Beschreibung des Produkts

Einzelheiten

Herkunftsort:

China

Dopingkonzentration:

Ho:0,3～0,4at%Cr:0,3～1,2at%Tm:5～6at%

Orientierung:

<111>±5°

Verzerrung der übertragenen Wellenfront:

≤0,125λ/Zoll bei 1064 nm

Löschungs-Verhältnis:

≥25 dB

Produktgröße:

Durchmesser ≤ 15 mm, Länge ≤ 150 mm

Maßtoleranz:

Durchmesser: 0/-0,03 mm, Länge: 0/+0,5 mm

Zylindrische Bearbeitung:

Schleifen, Polieren, Gewindeschneiden

Parallelität der Stirnflächen:

≤10"

Rechtwinkligkeit zwischen Stirnfläche und Stabachse:

≤5′

Ebenheit der Endfläche:

λ/10 bei 632,8 nm

Oberflächenqualität:

10-5 (MIL-O-13830A)

Fase:

0,15 ± 0,05 mm

Beschichtung:

S1/S2: R@2100mm≤0,2 %/Andere Folien können individuell angepasst werden

Laserwellenlänge:

2100 nm

Brechungsindex:

1,80 bei 2094 nm

besonders:

Keilwinkel, konkav/konvex, Heißvergoldung usw

Hervorheben:

Ho:Cr:Tm:YAG laser crystal 2.1μm

CTH:YAG laser crystal eye-safe

high efficiency diode pumped laser crystal

Beschreibung des Produkts

Ho:Cr:Tm:YAG (CTH:YAG) Laser Crystal, 2.1μm Eye-Safe, High Efficiency Flash/Diode Pumped

Cr:Tm:Ho:YAG crystals are laser crystals that use yttrium aluminum garnet (YAG) as an activator medium, incorporating sensitizing ions chromium (Cr), energy-transfer ions thulium (Tm), and activator ions holmium (Ho). These crystals produce laser light of specific wavelengths through pulse solid-state laser devices and are widely used in various fields.

Crystalstructure	Cubic system
Lattice constant	12.01 Å
Moh's hardness	8.5
density	4.56±0.04 g/ cm3
Specific heat	0.59J/g.cm 3 @ 0-20℃
Elastic Modulus	310GPa
Young's modulus	3.17×10 4 Kg/mm 2
Poisson'sratio	0.3
Tensile strength	0.13~0.26GPa
Coefficient of thermal expansion	[100] Direction: 8.2×10 -6 / K @ 0~250℃
Coefficient of thermal expansion	[110] Direction: 7.7×10 -6 /K@ 0~250℃
Coefficient of thermal expansion	[111] Direction: 7.8×10 -6 /K@ 0~250℃
Thermal conductivity	14W/m/K@20℃ ; 10.5W/m/K@100℃
Thermo-optic coefficient (dn/dT)	7.3×10 -6 / K
Thermal shock resistance	790W/m
Solubility	Insoluble in water, slightly soluble in common acids

Main features:

High pulse output energy

Suitable for repetitive frequency work

Can work efficiently at room temperature

Suitable for lamp pumping, also suitable for diode pumping

The wavelength of laser work is relatively safe for human eyes

Application areas:

Medicine: The Cr:Tm:Ho:YAG laser is used in various surgical procedures in departments such as urology, orthopedics, otorhinolaryngology, dermatology, and gynecology. It is particularly effective in urological procedures involving urinary tract stones, prostate enlargement, and bladder tumors. Its high-energy pulsed laser can precisely shatter stones while minimizing damage to surrounding tissues.

Meteorology: In meteorological observations, the Cr:Tm: Ho:YAG laser can be employed in lidar systems to enhance the accuracy and real-time nature of meteorological data.

Research: Due to its unique laser characteristics and broad potential for applications, Cr:Tm:Ho:YAG lasers are also an important tool in the field of research, used for various physical, chemical, and biological experiments.

Schlagworte:

Einzelheiten Zu Den Produkten

Zu Hause Produits

Laserkristalle

Ho:Cr:Tm:YAG (CTH:YAG) Laser Crystal, 2.1μm Eye-Safe, High Efficiency Flash/Diode Pumped

Alle Kategorien

Ho:Cr:Tm:YAG (CTH:YAG) Laser Crystal, 2.1μm Eye-Safe, High Efficiency Flash/Diode Pumped

Markenbezeichnung:	Crystro
Modellnummer:	LCR-2026-15-01
Zahlungsbedingungen:	T/T, Western Union, MoneyGram, Paypal

Einzelheiten

Beschreibung des Produkts

Einzelheiten

Herkunftsort:

China

Markenname:

Crystro

Modellnummer:

LCR-2026-15-01

Dopingkonzentration:

Ho:0,3～0,4at%Cr:0,3～1,2at%Tm:5～6at%

Orientierung:

<111>±5°

Verzerrung der übertragenen Wellenfront:

≤0,125λ/Zoll bei 1064 nm

Löschungs-Verhältnis:

≥25 dB

Produktgröße:

Durchmesser ≤ 15 mm, Länge ≤ 150 mm

Maßtoleranz:

Durchmesser: 0/-0,03 mm, Länge: 0/+0,5 mm

Zylindrische Bearbeitung:

Schleifen, Polieren, Gewindeschneiden

Parallelität der Stirnflächen:

≤10"

Rechtwinkligkeit zwischen Stirnfläche und Stabachse:

≤5′

Ebenheit der Endfläche:

λ/10 bei 632,8 nm

Oberflächenqualität:

10-5 (MIL-O-13830A)

Fase:

0,15 ± 0,05 mm

Beschichtung:

S1/S2: R@2100mm≤0,2 %/Andere Folien können individuell angepasst werden

Laserwellenlänge:

2100 nm

Brechungsindex:

1,80 bei 2094 nm

besonders:

Keilwinkel, konkav/konvex, Heißvergoldung usw

Lieferzeit:

4-5 Wochen

Zahlungsbedingungen:

T/T, Western Union, MoneyGram, Paypal

Hervorheben:

Ho:Cr:Tm:YAG laser crystal 2.1μm

CTH:YAG laser crystal eye-safe

high efficiency diode pumped laser crystal

Beschreibung des Produkts

Ho:Cr:Tm:YAG (CTH:YAG) Laser Crystal, 2.1μm Eye-Safe, High Efficiency Flash/Diode Pumped

Crystalstructure	Cubic system
Lattice constant	12.01 Å
Moh's hardness	8.5
density	4.56±0.04 g/ cm3
Specific heat	0.59J/g.cm 3 @ 0-20℃
Elastic Modulus	310GPa
Young's modulus	3.17×10 4 Kg/mm 2
Poisson'sratio	0.3
Tensile strength	0.13~0.26GPa
Coefficient of thermal expansion	[100] Direction: 8.2×10 -6 / K @ 0~250℃
Coefficient of thermal expansion	[110] Direction: 7.7×10 -6 /K@ 0~250℃
Coefficient of thermal expansion	[111] Direction: 7.8×10 -6 /K@ 0~250℃
Thermal conductivity	14W/m/K@20℃ ; 10.5W/m/K@100℃
Thermo-optic coefficient (dn/dT)	7.3×10 -6 / K
Thermal shock resistance	790W/m
Solubility	Insoluble in water, slightly soluble in common acids

Main features:

High pulse output energy

Suitable for repetitive frequency work

Can work efficiently at room temperature

Suitable for lamp pumping, also suitable for diode pumping

The wavelength of laser work is relatively safe for human eyes

Application areas:

Meteorology: In meteorological observations, the Cr:Tm: Ho:YAG laser can be employed in lidar systems to enhance the accuracy and real-time nature of meteorological data.
